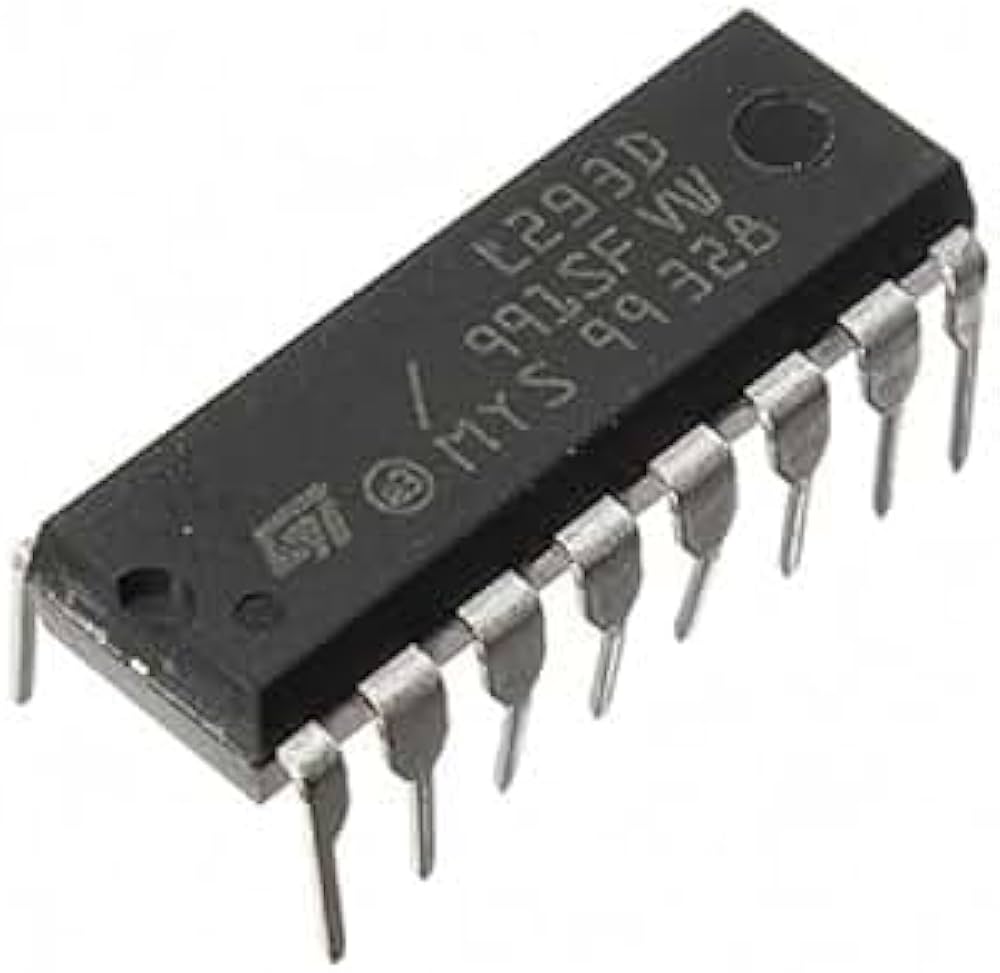

L293D is a 16-pin DIP (Dual In-line Package) monolithic integrated circuit designed as a quadruple high-current half-H driver to control inductive loads like DC motors, stepper motors, and relays. It features dual H-bridges, allowing bidirectional control of up to two DC motors or one stepper motor, supporting (600mA)continuous current per channel and voltages from (4.5V to 36V)
Specifications
Motor Driver Type: Dual H-Bridge (bidirectional control)
Output Current:600 mA per channel (continuous), up to 1.2 A peak current
Supply Voltage:4.5 to 36 V
Logic Voltage:Compatible with TTL/DTL standard logic levels (approx.5V)
Package:DIP-16 (16-pin through-hole)
Safety:Internal clamp diodes for inductive flyback protection and over-temperature protection
