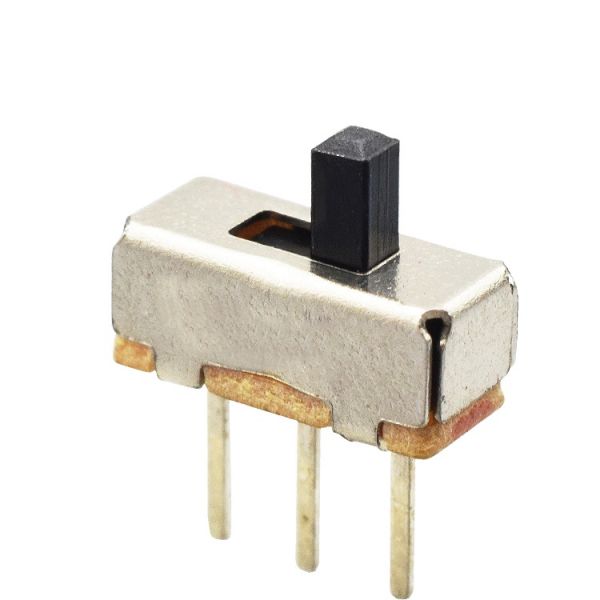

SS12D00 (also known as SS12D00G3) is a miniature single-pole double-throw (SPDT) slide switch commonly used in electronics projects. It's a popular choice for compact applications and breadboard prototyping.
Specifications
Slide switch: Sliding action (not toggle)
Configuration: SPDT (Single Pole Double Throw)
Positions: 3-position physically, but functionally 2-position (ON-ON)
Package: DIP-style with through-hole pins for PCB mounting
Model: SS12D00G3 (G3 indicates pin style)
Voltage rating: 50V DC maximum
Current rating: 0.5A (500mA) maximum
Contact resistance: ≤ 30mΩ
Insulation resistance: ≥ 100MΩ
Dielectric strength: 250V AC/minute
Power rating: Typically < 10W
