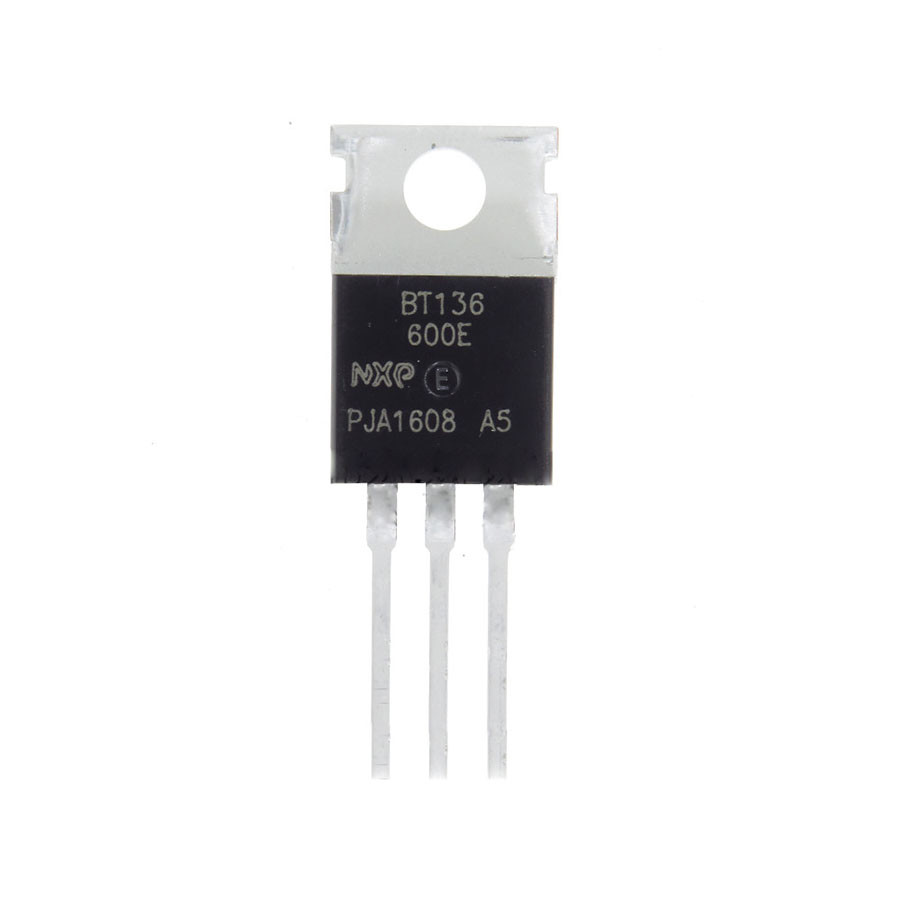

BT136 is a sensitive gate 4-Quadrant Triac (bidirectional thyristor) in a TO-220 package, featuring a 600V repetitive peak off-state voltage (VDRMcap V sub cap D cap R cap M end-sub)and a 4A RMS on-state current (IT(RMS)cap I sub cap T open paren cap R cap M cap S close paren end-sub ,It features a low 10mA gate trigger current, making it ideal for low-power AC switching, motor control, and lighting applications.
Specifications
The maximum supply current through the terminal is 4A
The voltage at the On-state gate is 1.4V
Gate trigger current is 10mA
The maximum terminal voltage is 600 V
Holding current is 2.2mA
The latching current is 4mA
The available package is To-220
